Hydraulic Toe Jacks, EX-Series (up to 30t)

These Jacks require an external hydraulic pump.

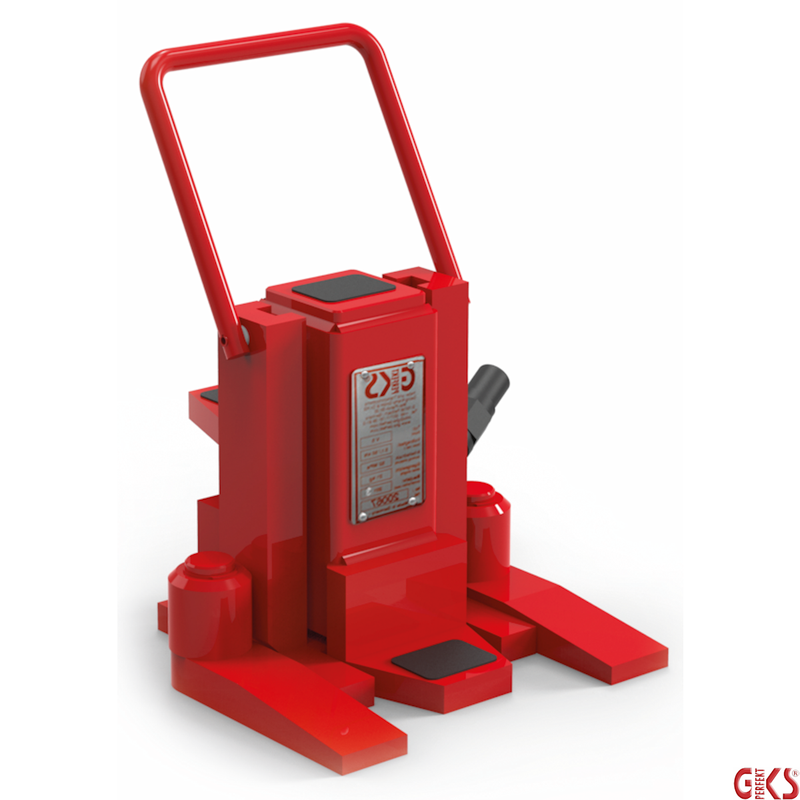

V5K-EX

Full Load Capacity 50 kN / 11,000 lbs (5 t)
Lifting Height 4.1" (105 mm)
Loading Height
Toe (min) 0.6" (15 mm)
Toe (max) 3.7" (95 mm)
Top Plate 7.5" (190 mm)
Safety Toe Positions 1
Working Pressure 7,542 psi (520 bar)
Overall Dimentions (LxWxH) 8.4x8.4x7.5" (210x215x190 mm)
Weight 26 lbs (12 kg)
Item Number 10187
pdfDimension sheet V5K-EX

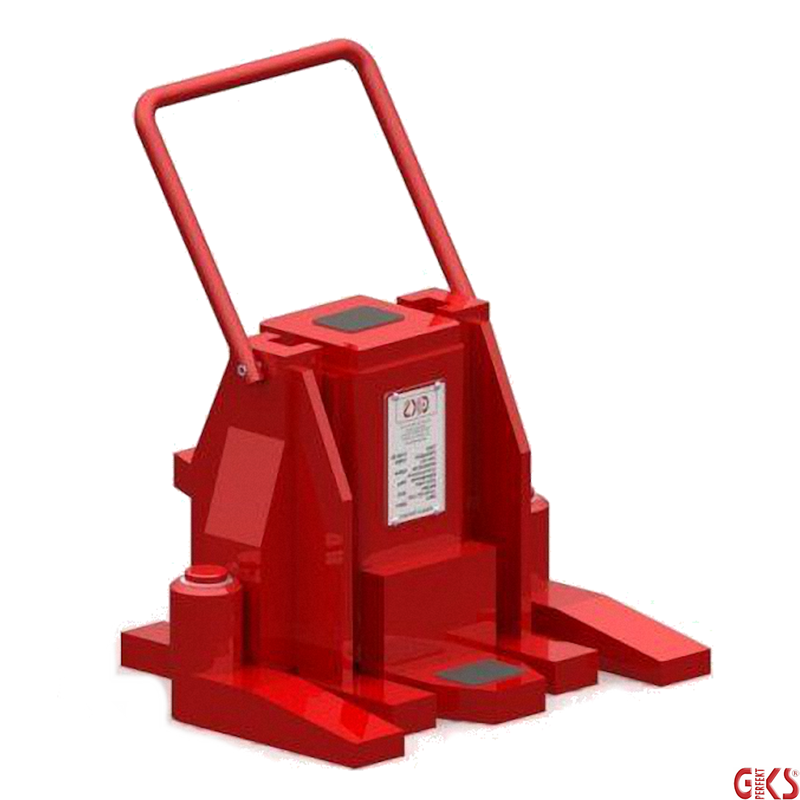

V10K-EX

Full Load Capacity 100 kN / 22,000 lbs (10 t)
Lifting Height 4.3" (110 mm)
Loading Height
Toe (min) 0.8" (20 mm)
Toe (max) 4.3" (110 mm)
Top Plate 8.3" (211 mm)
Safety Toe Positions 1
Working Pressure 7,542 psi (520 bar)
Overall Dimentions (LxWxH) 11x11.3x8.3" (280x287x211 mm)
Weight 55 lbs (25 kg)
Item Number 11889
pdfDimension sheet V10K-EX

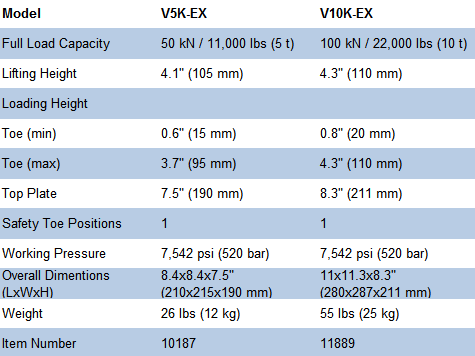

Comparison Chart
