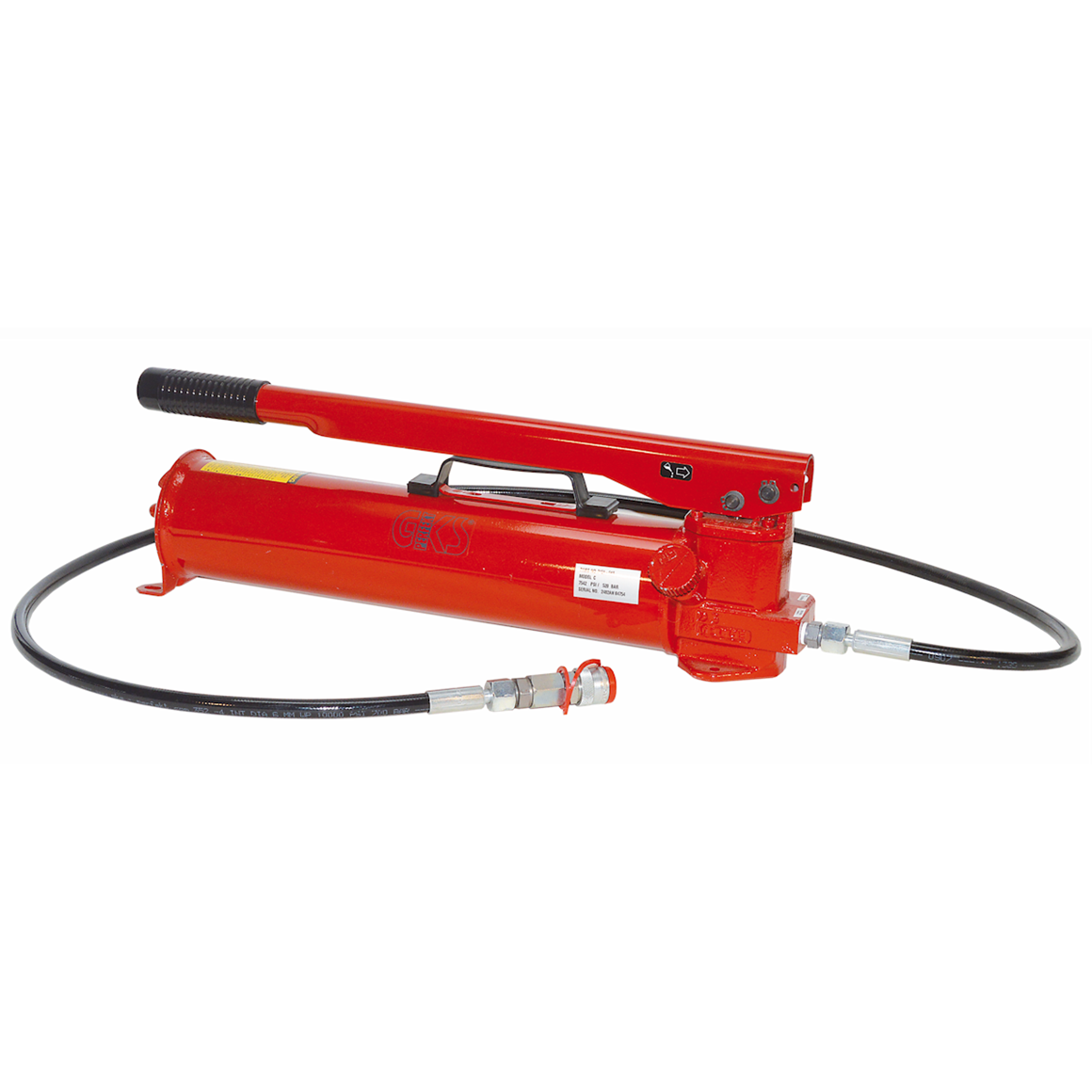

Hand Pump

The hydraulic hand PV allow the use of 1 or 2 toe jacks, when the lifting capacity needs to be doubled, the lifting on one side only is impossible or safety reasons require operation and monitoring from a certain distance.

PV

Working Pressure (preset)



7,542 psi (520 bar)

Flow rate stage 1

42 cm3 / 435 psi / 30 bar

Flow rate stage 2

2,6 cm3 / 7,542 psi / 520 bar

Tank Capacity



2,25 l

Overall Dimensions
(LxWxH)


18.3 x 5.6 x 6.9"
(465 x 143 x 175 mm)

Tare Weight with oil (whithout hoses)



27 lbs (12 kg)

 Hose (6.6 ft / 2 m), quick-release fastener



 2

For gks toe jacks



 Je 2 x V5, V5-EX, V5K-EX, V10, V10-EX, V15, V20, 1 x V30-EX (430 bar)
Item Number 10198
pdfDimension sheet PV
