Electric Pumps
The hydraulic - electric pumps PE allow the use of 2 or more toe jacks, when the lifting capacity needs to be doubled, the lifting on one side only is impossible or safety reasons require operation and monitoring from a certain distance.

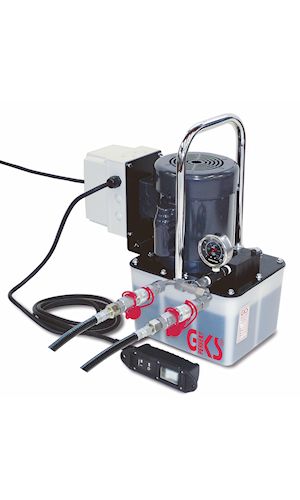

PE
|
Working Pressure (preset)
|
7.542 psi (520 bar) |
|
Flow rate Stage 1 |
2,5 l |
|
Flow rate Stage 2
|
0,3 l / min |
|
Tank Capacity
|
4,8 l |
|
Overall Dimensions (LxWxH) |
17.7 x 12.2 x 19.5" (450 x 310 x 495 mm) |
|
Tare Weight with oil (without hoses)
|
66 lbs (30 kg) |
|
Hose (10 ft / 3 m), quick-release fastener
|
2 |
|
Electric connection
|
230 V / 50 Hz |
|
For use with gks toe jacks
|
each 2 x V5, V5-EX, V5K-EX, G5, V10, V10K, V10-EX, V15, V20, each 2 x V30-EX (working pressure 6.237 psi / 430 bar) |
| Item Number | 10199 |
 | Dimension sheet PE |

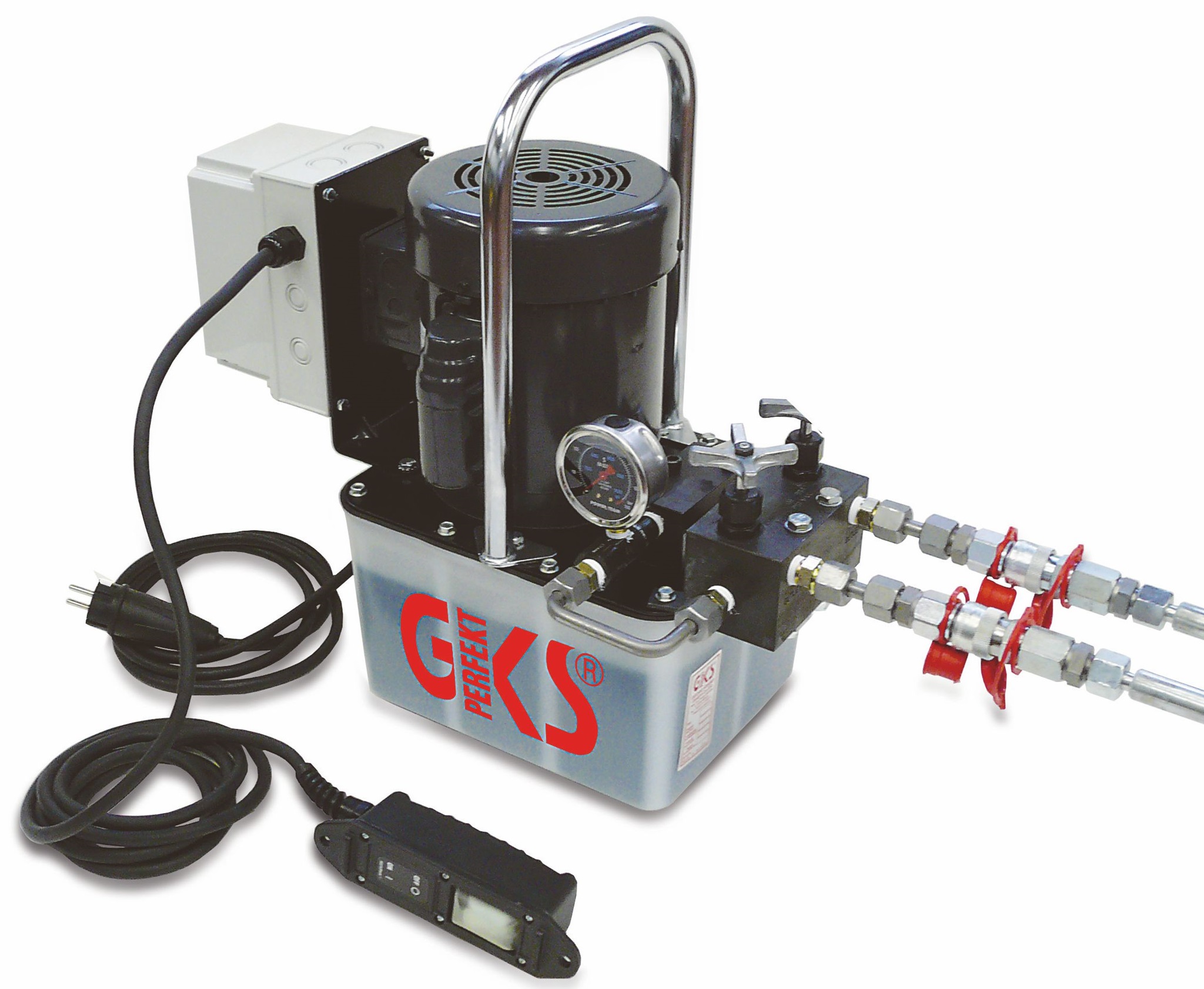

PE2
|
Working Pressure (preset)
|
7,542 psi (520 bar) |
|
Flow rate Stage 1 |
2,5 l |
|
Flow rate Stage 2 |
0,3 l / min |
|
Tank Capacity |
4,8 l |
|
Overall Dimensions (LxWxH) |
25.6 x 12.2 x 19.5" (650 x 310 x 495 mm) |
|
Tare Weight with oil (without hoses)
|
77 lbs (35 kg) |
|
Hose (10 ft / 3 m), quick-release fastener with 2-fold distributor (shut-off valve)
|
2 |
|
Electric Connection |
230 V / 50 Hz |
|
For use with gks toe jacks
|
each 2 x V5, V5-EX, V5K-EX, G5, V10, V10K, V10-EX, V15, V20, each 2 x V30-EX (working pressure 6.237 psi / 430 bar) |
| Item Number | 13591 |
| Dimension sheet PE2 |
PE4
|
Working Pressure (preset)
|
7,542 psi (520 bar) |
|
Flow rate Stage 1 |
2,5 l |
|
Flow rate Stage 2
|
0,3 l / min |
|
Tank Capacity
|
4,8 l |
|
Overall Dimensions (LxWxH) |
25.6 x 12.2 x 19.5" (650 x 310 x 495 mm) |
|
Tare Weight with oil (without hoses)
|
97 lbs (44 kg) |
|
Hose (10 ft / 3 m), quick-release fastener with 4-fold distributor (shut-off valve)
|
4 |
|
Electric Connection
|
230 V / 50 Hz |
|
For use with gks toe jacks
|
each 4 x V5, V5-EX, V5K-EX, G5, V10, V10K, V10-EX, V15, V20, each 2 x V30-EX (working pressure 6.237 psi / 430 bar) |
| Item Number | 13592 |
| Dimension sheet PE4 |

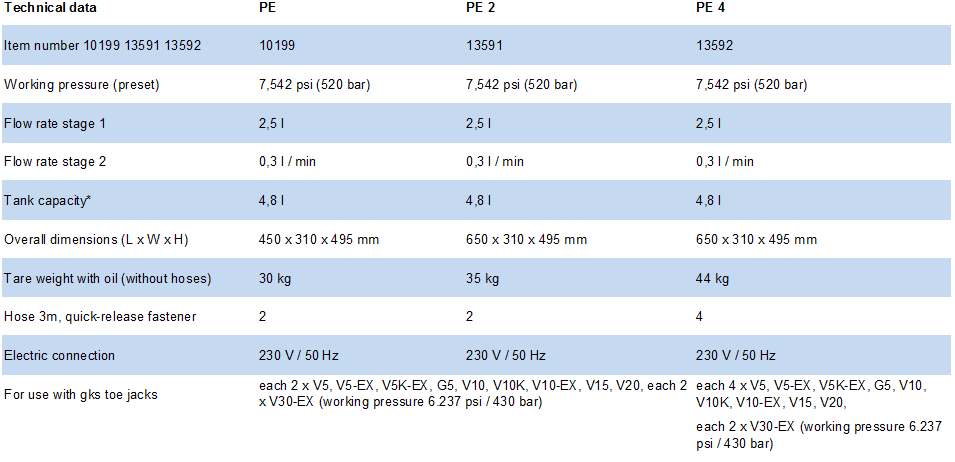

Comparison Chart
The option „Bigger Oil Reservoir“ is mandatory to operate 4 GKS toe jacks V30-EX, working pressure setting 6,237 psi / 430 bar.
* quick-release fastener with 2-fold distributor (shut-off valve)
** quick-release fastener with 4-fold distributor (shut-off valve)
