Transport Trolleys 6 t up to 12 t
- Our standard transport trolleys F/L3 up to F/L18 for heavy loads from 6 t up to 36 t
- Extremely low loading height
- All transport trolleys from F/L 3 to F/L 18 are interchangeable due to identical loading height

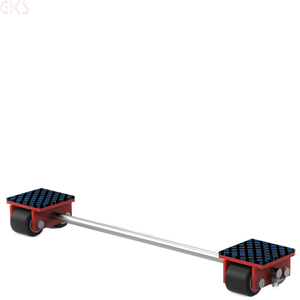

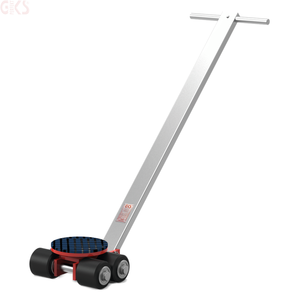

F3 / L3
| F3 | L3 | |
|---|---|---|
| Loading Height / no. of Wheels (3.3x3.3" / 85x85 mm) | 4.3" (110 mm) / 4 | 4.3" (110 mm) / 4 |
| Contact surface per cassette | 5.5x5.5" (150x150 mm) | - |
| Connecting Rod, adjustable | 11.8 - 39.4" (300 - 1.000 mm) | - |
| Swivel Plate Ø 6.7" (170 mm), Steering angle | - | ± 90° |
| Steering Rod | - | 37.4" (950 mm) |
| Overall Dimensions (LxW) | - | 10.6x9.1" (270x230 mm) |
| Tare Weight | 33 lbs (15 kg) | 27 lbs (12 kg) |
| Load Capacity | 30 kN / 6,600 lbs (3 t) | 30 kN / 6,600 lbs (3 t) |
| Total Load Capacity 60 kN / 13,200 lbs (6 t) | ||
| Item Number | 10206 | 10207 |
 | Dimension sheet F3 |
| Dimension sheet L3 |

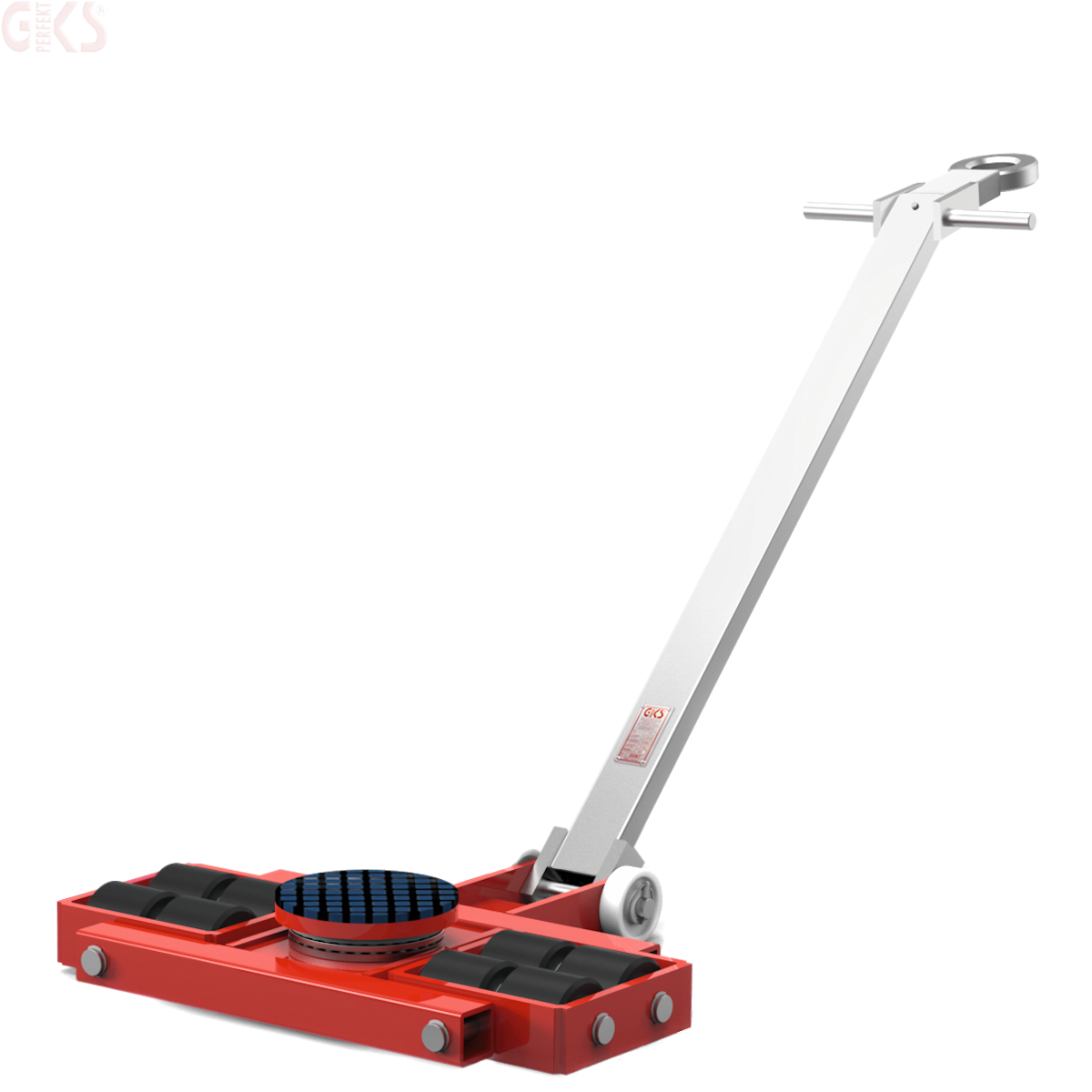

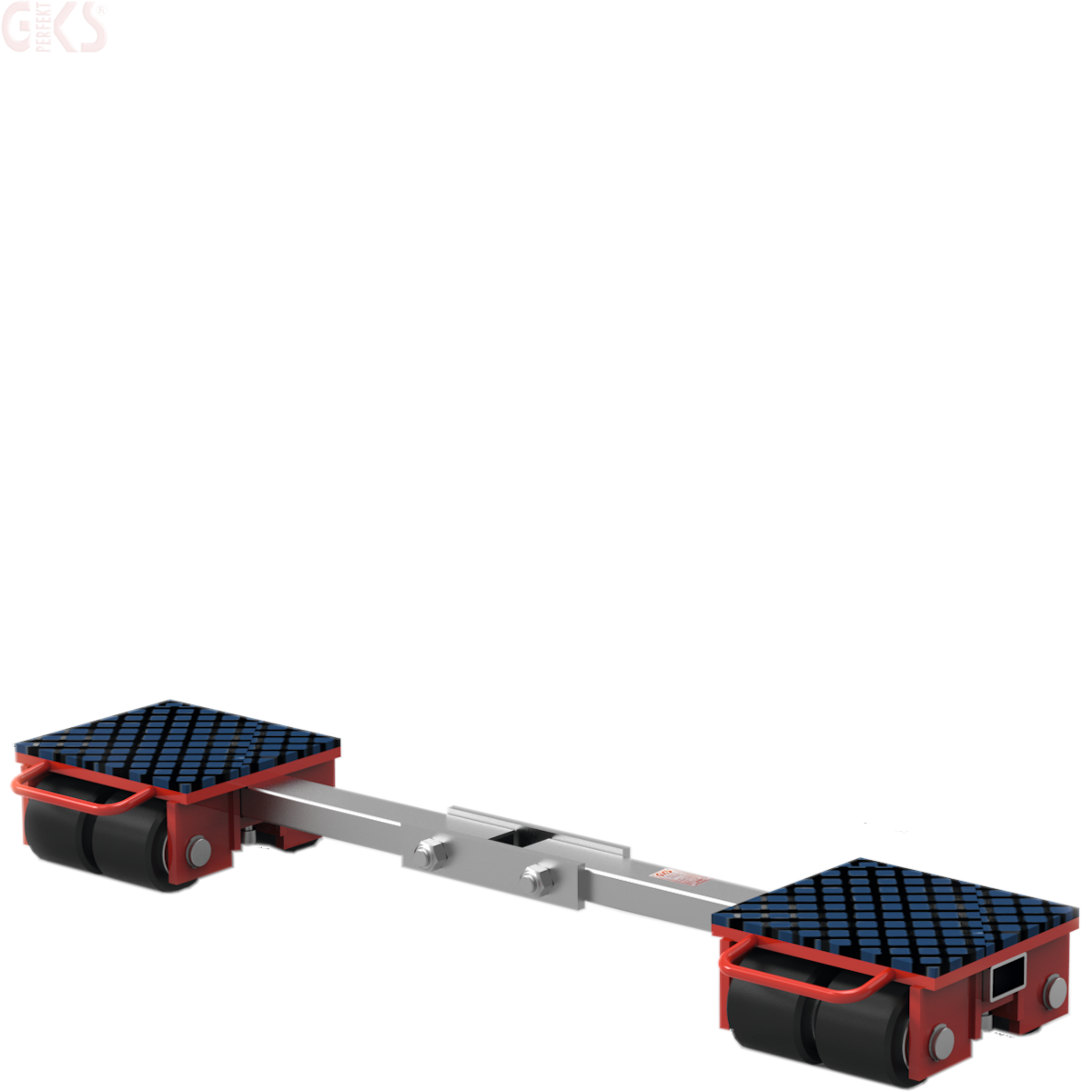

F6 / L6
| F6 | L6 | |
|---|---|---|
| Loading Height / no. of Wheels (3.3x3.3" / 85x85 mm) | 4.3" (110 mm) / 8 | 4.3" (110 mm) / 8 |
| Contact surface per cassette | 7.9x8.7" (200x220 mm) | - |
| Connecting Rod, adjustable | 25.2 - 40.6" (640 - 1.030 mm) | - |
| Swivel Plate Ø 6.7" (170 mm), Steering angle | - | ± 90° |
| Steering Rod | - | 42.5" (1080 mm) |
| Overall Dimensions (LxW) | - | 24x20.5" (610x520 mm) |
| Tare Weight | 66 lbs (30 kg) | 90 lbs (41 kg) |
| Load Capacity | 60 kN / 13,200 lbs (6 t) | 60 kN / 13,200 lbs (6 t) |
| Total Load Capacity 120 kN / 26,400 lbs (12 t) | ||
| Item Number | 10208 | 10209 |
| Dimension sheet F6 |
| Dimension sheet L6 |

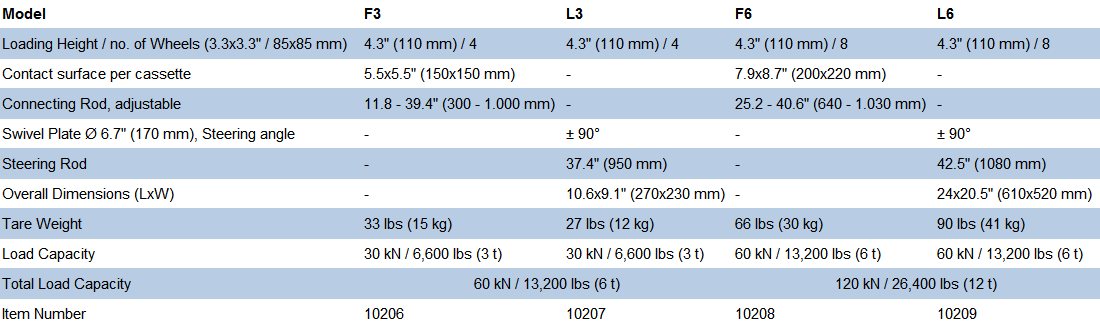

Comparison Chart
