Tandem Trolleys 6 t up to 12 t

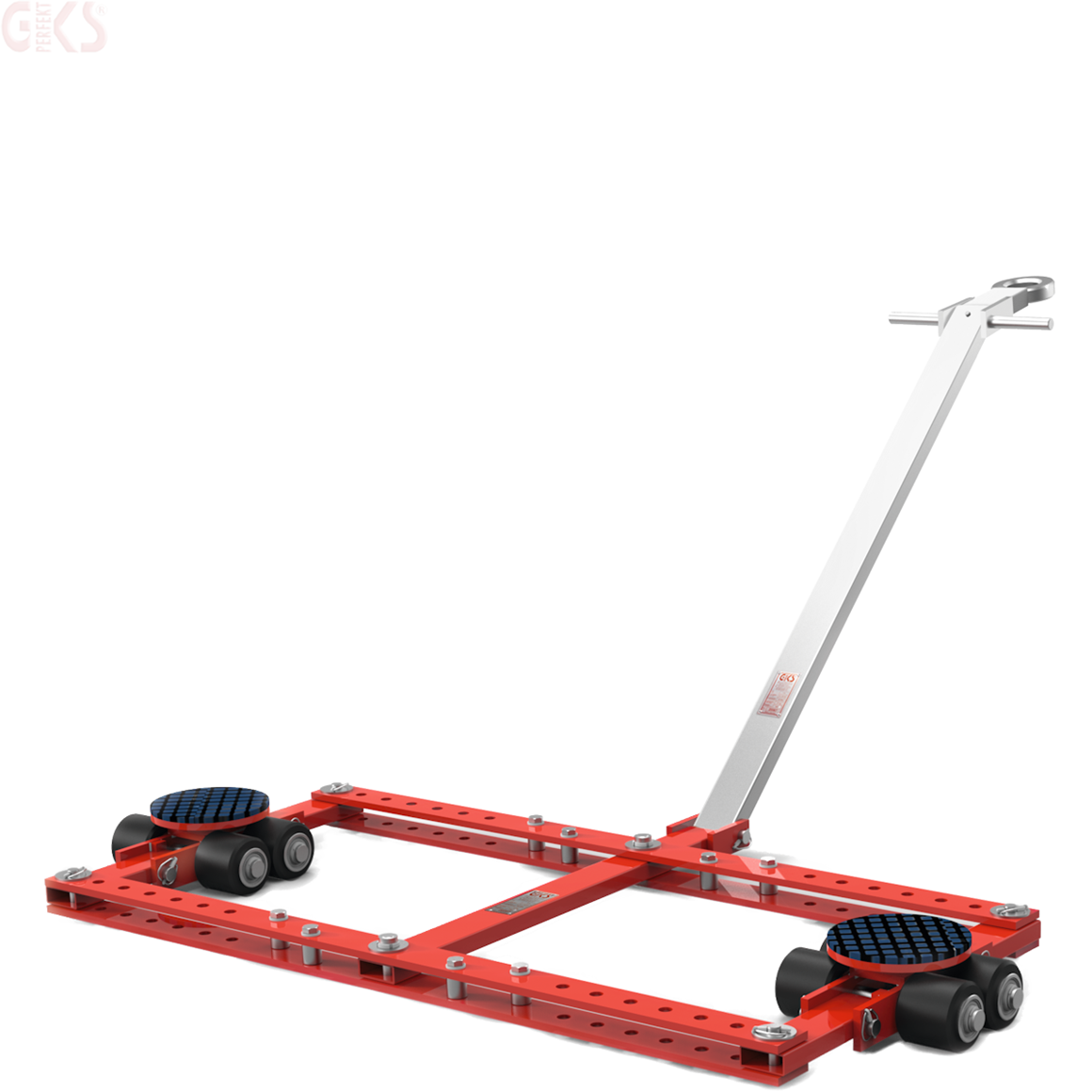

TL6

Loading Height / no of Wheels (3.3x3.3" / 85x85 mm)	4.3" (110 mm / 8)
2 Swivel Plates Ø 6.7" (170 mm), Steering angle	± 50°
Overall Dimensions (LxW)	55.9x29.9" (1420x760 mm)
Adjustable in 7 steps, Range *	21.7" - 45.3" (550 - 1150 mm)
Steering Rod with eye for pulling	37.8" (960 mm)
Tare Weight	119 lbs (54 kg)
Load Capacity	60 kN / 13,200 lbs (6 t)
Item Number	10229
* a greater track range is available upon request

Dimension sheet TL6

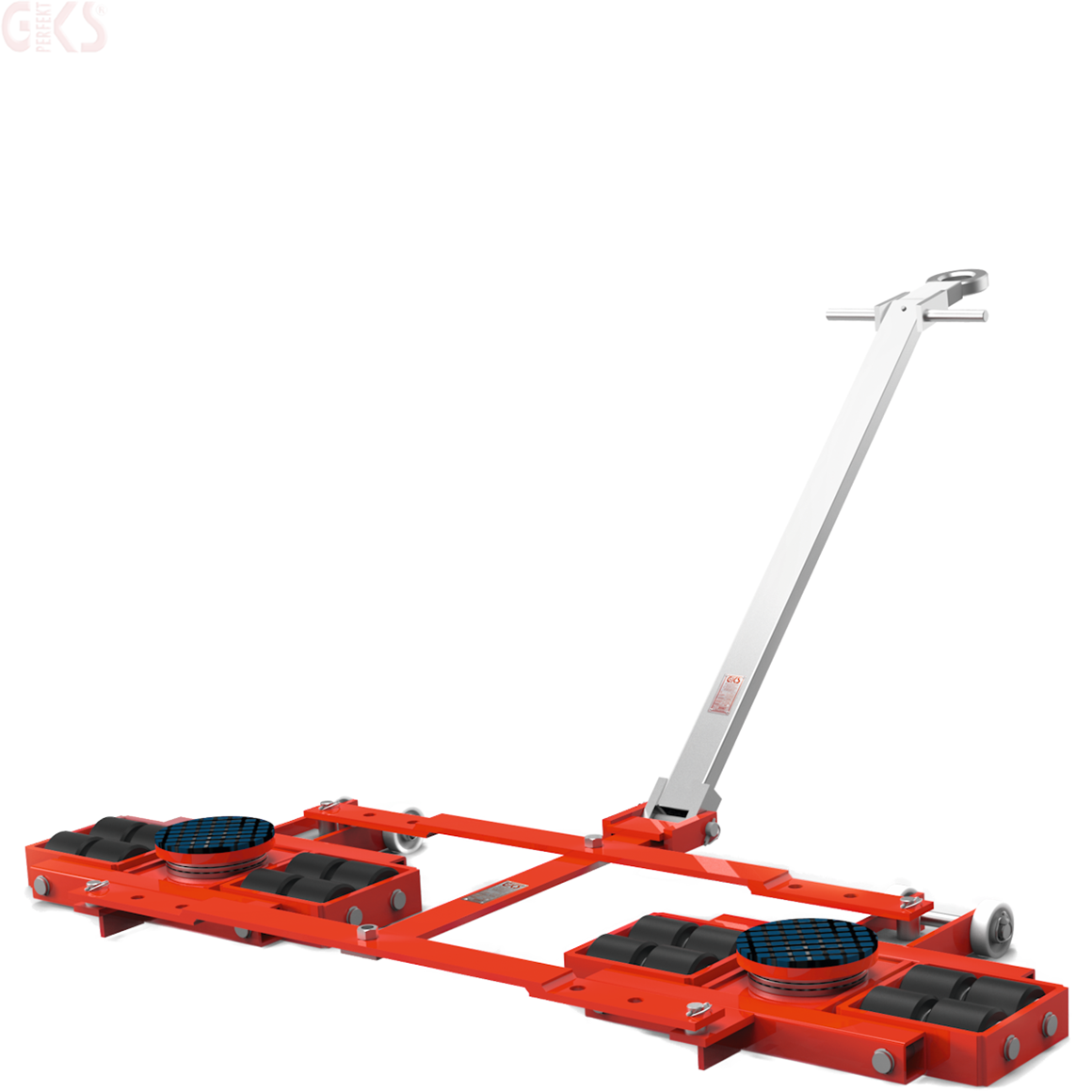

TL12

Loading Height / no. of Wheels (3.3x3.3" / 85x85 mm)	4.3" (110 mm / 16)
2 Swivel Plates Ø 6.7" (170 mm), Steering angle	± 40°
Overall Dimensions (LxW)	63.4x27.8" (1610x705 mm)
Adjustable in 3 steps, Range *	26 - 39.4" (660 - 1000 mm)
Steering Rod with eye for pulling	42.5" (1080 mm)
Tare Weight	232 lbs (105 kg)
Load Capacity	120 kN / 26,400 lbs (12 t)
Item Number	10230
* a greater track range is available upon request

Dimension sheet TL12

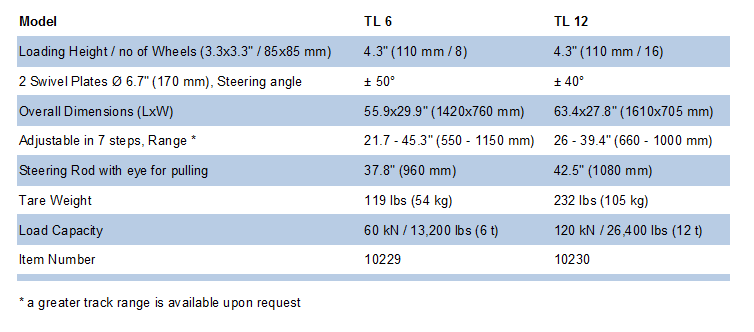

Comparison Chart
