Tandem Trolleys 20 t up to 60 t

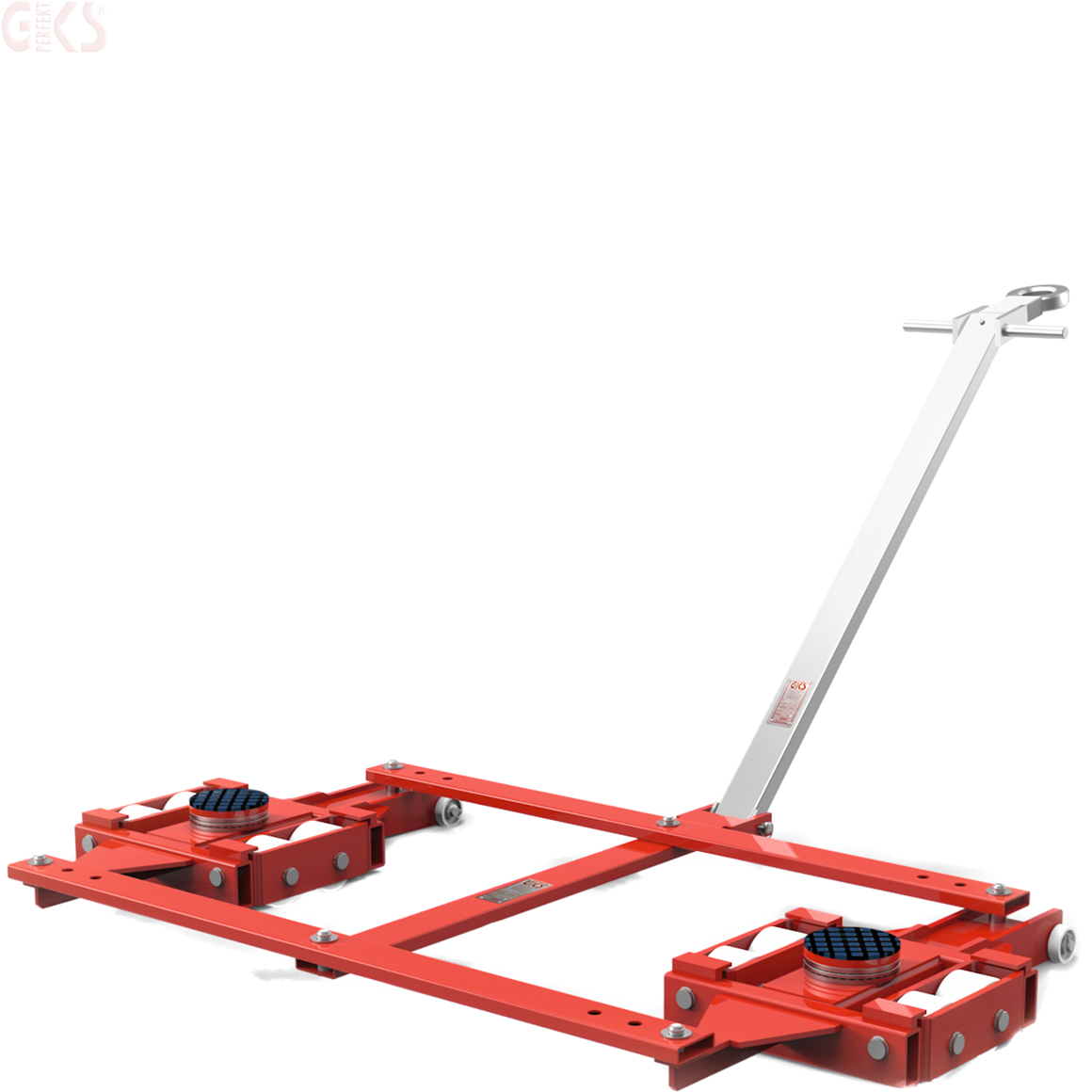

TL20

Loading Height / no. of Wheels (5.5x3.3" / 140x85 mm) 7.1" (180 mm) / 8
2 Swivel Plates Ø 6.7" (170 mm), Steering angle ± 45°
Overall Dimensions (LxW) 84.1x46.5" (2135x1180 mm)
Adjustable in 3 steps, Range * 49.6 - 63" (1260-1600 mm)
Steering Rod with eye for pulling 63.8" (1620 mm)
Tare Weight 489 lbs (222 kg)
Load Capacity 200 kN / 44,000 lbs (20 t)
Item Number 11803

* a greater track range is available upon request
pdfDimension sheet TL20

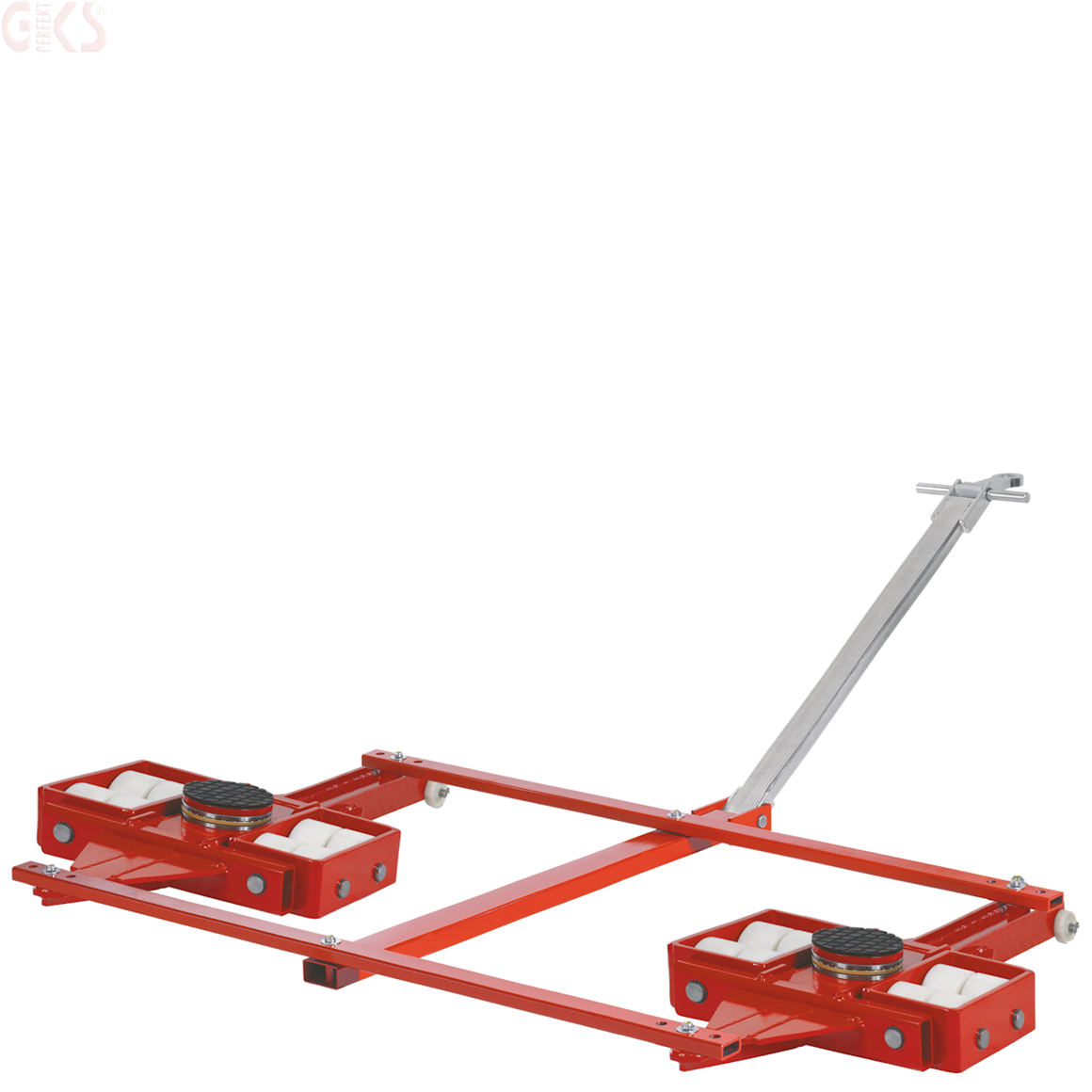

TL40

Loading Height / no. of Wheels (5.5x3.3" / 140x85 mm) 7.1" (180 mm) / 16
2 Swivel Plates Ø 9.8" (250 mm), Steering angle ± 45°
Overall Dimensions (LxW) 86.6x46.6" (2200x1180 mm)
Adjustable in 3 steps, Range * 49.6 - 63" (1260-1600 mm)
Steering Rod with eye for pulling 63.8" (1620 mm)
Tare Weight 573 lbs (260 kg)
Load Capacity 400 kN / 88,000 lbs (40 t)
Item Number 11148

* a greater track range is available upon request
pdfDimension sheet TL40

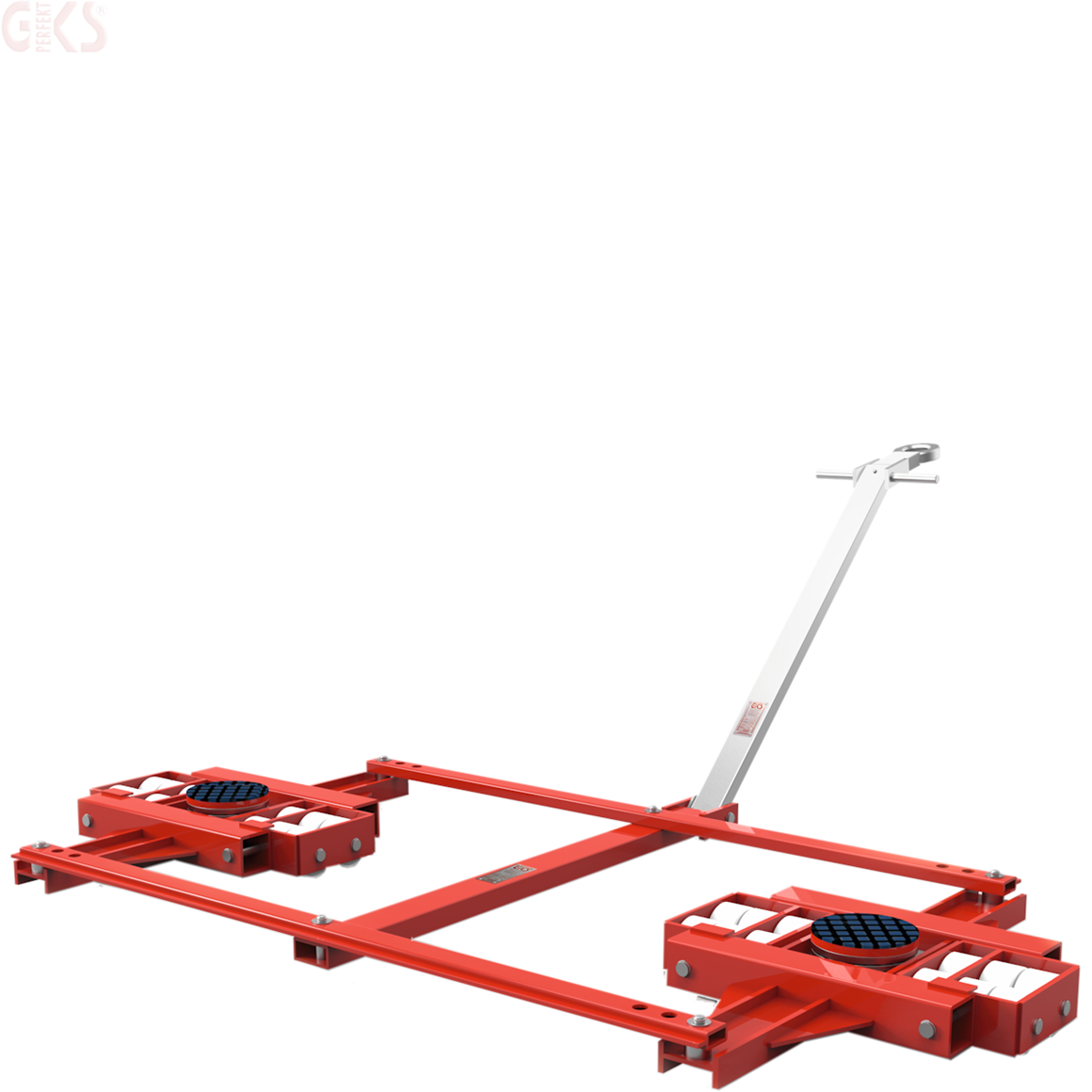

TL60

Loading Height / no. of Wheels (5.5x3.3" / 140x85 mm) 7.1" (180 mm) / 24
2 Swivel Plates Ø 9.8" (250 mm), Steering angle ± 40°
Overall Dimensions (LxW) 124x71.5" (3150x1815mm)
Not Adjustable * 46.3" (1175 mm)
Steering Rod with eye for pulling 63.8" (1620 mm)
Tare Weight 1257 lbs (570 kg)
Load Capacity 600 kN / 132,000 lbs (60 t)
Item Number 12035

* a greater track range is available upon request
pdfDimension sheet TL60

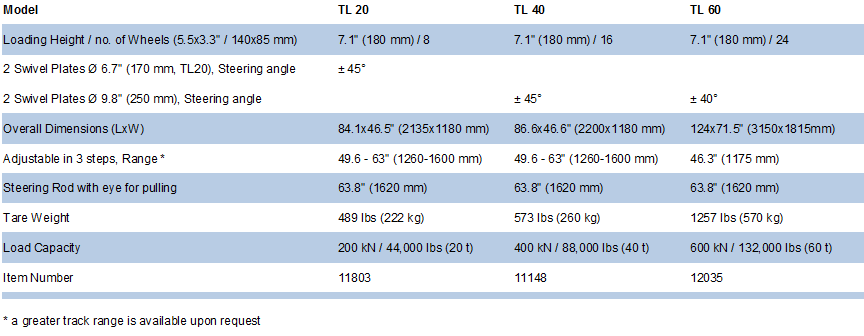

Comparison Chart
