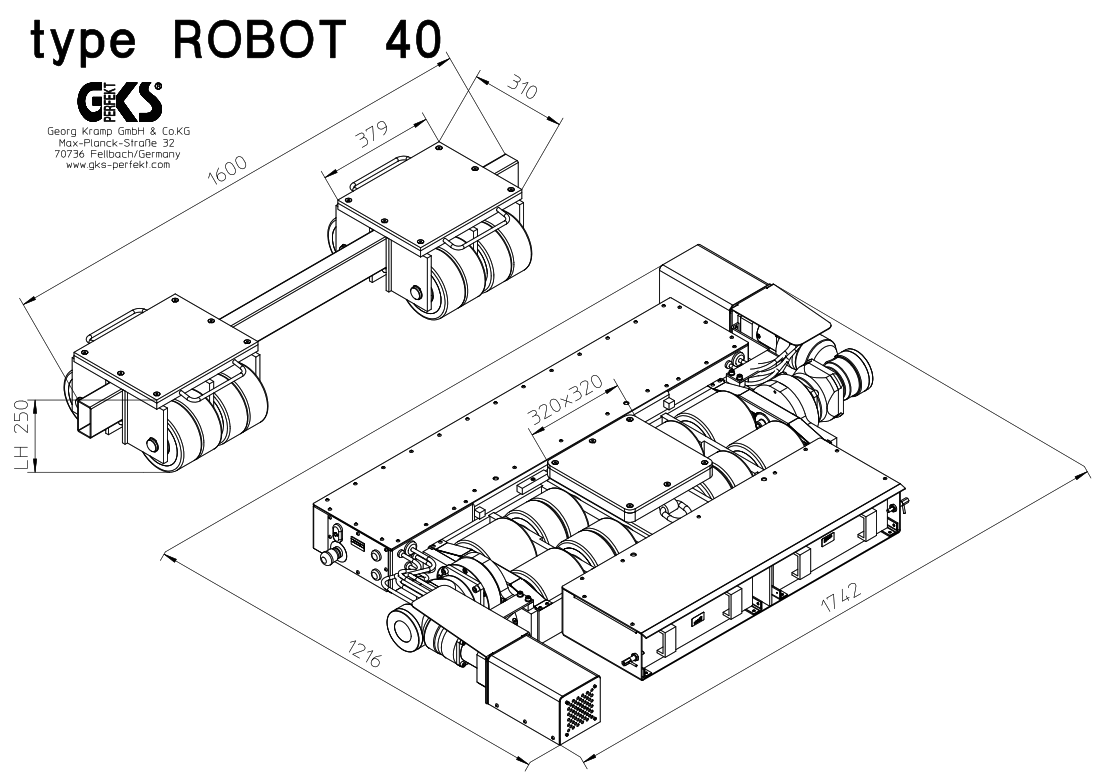

ROBOT 40 Synchron Liftup

ROBOT-40-Synchronous-Liftup

Tranport System for heavy loads up to 88,000 lbs / 40 Tons

Exact straight driving with stroke turntable

1. Exact Straight Driving

The driving power comes from 2 lithium-polymer batteries, each 24V and is passed down to two asynchronous motors through a programmable motor control with a power of 1.5 kW each. The torque is transmitted to the drive wheels through a transmission box and gearing. Signals are transmitted from the remote control to the motor control via a CAN-Bus. Current operating state is shown on the display. The overall system consists of a driven steerable L-ROBOT and the non-driven rigid F-ROBOT. Thus, from a proven 3-point suport.

Suited for use in production lines / Assembly.

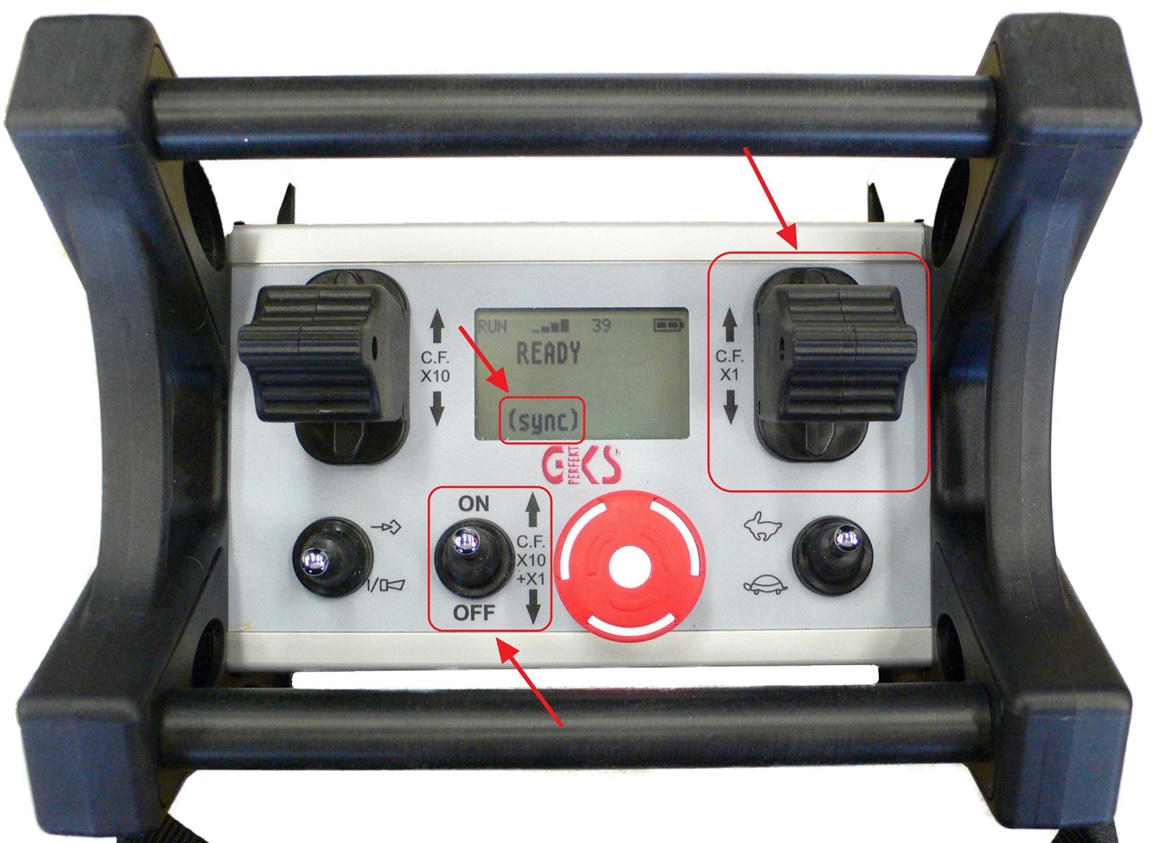

Remote control unit in Exact Straight Driving mode

Switching from manual to exact straight driving through a lever. Exact straight driving forward / backward is then possible with a single lever (right). Notice the "sync" message on the display.

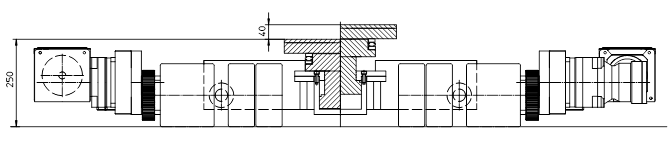

2. Stroke Turntable

The stroke turntable function is actuated via a cable remote control or alternatively via the remote control. A small hydraulic device with 24V DC and 500W powers the turntable. The tank capacity is 1 l. The stroke is 1.6" / 40 mm and thus can be driven with the load.

Suited for use in production lines / Assembly.

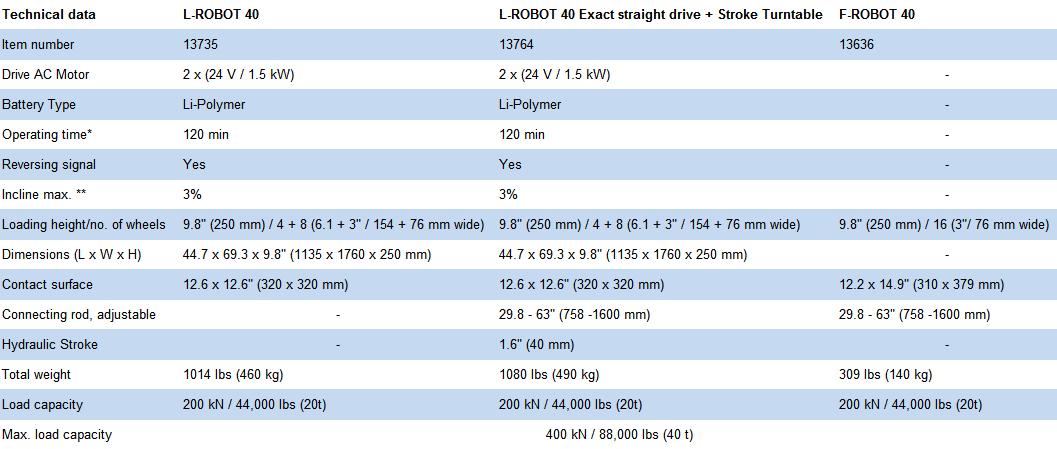

* depending on the starting-up/stopping procedures

** use a locking device to prevent inadvertent rolling at gradients

Technical specifications are subject to change without notice
