Hydraulic Toe Jacks, K-EX-Series (up to 10t)
These Jacks require an external hydraulic pump.

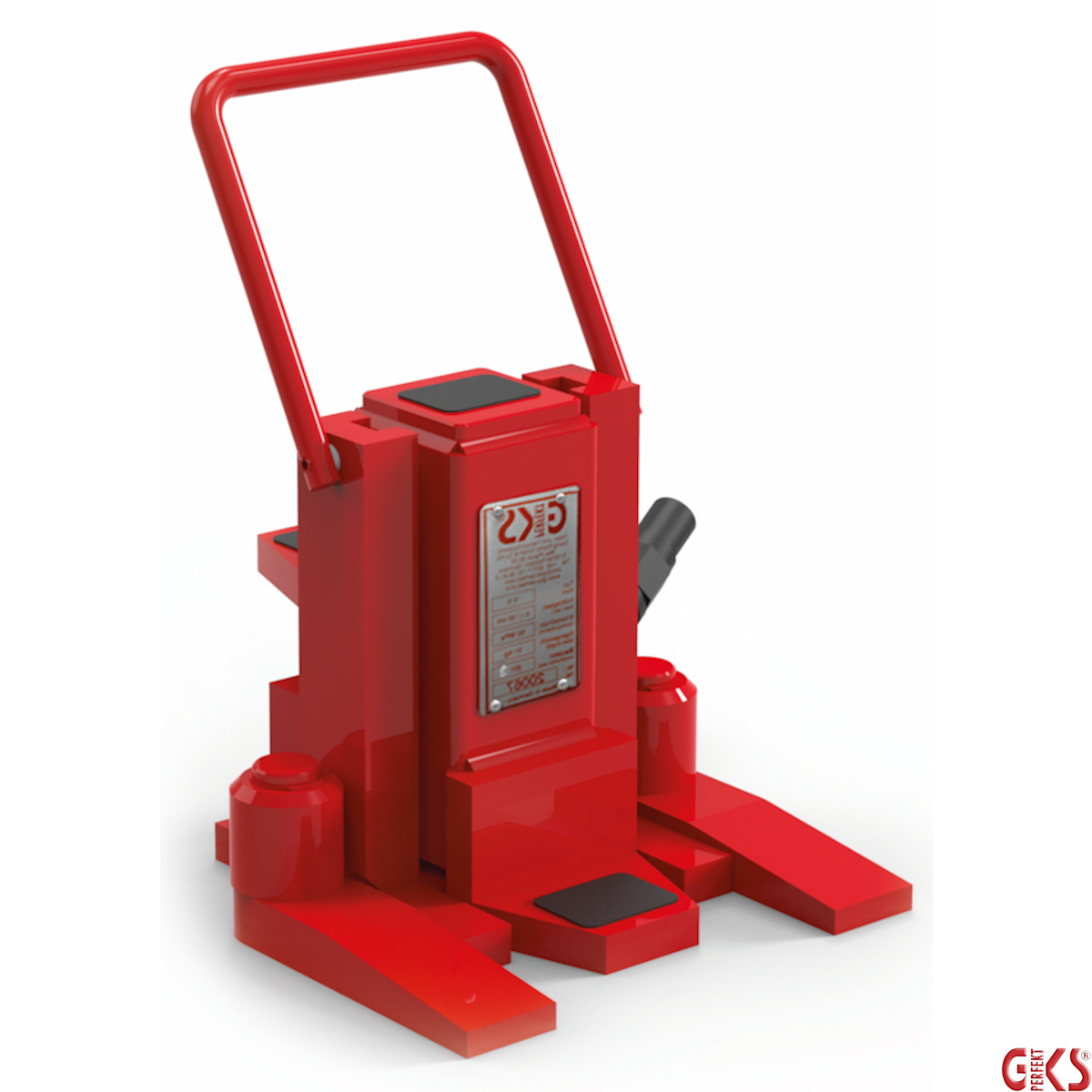

V5K-EX
| Full Load Capacity | 50 kN / 11,000 lbs (5 t) |
| Lifting Height | 4.1" (105 mm) |
| Loading Height | |
| Toe (min) | 0.6" (15 mm) |
| Toe (max) | 3.7" (95 mm) |
| Top Plate | 7.5" (190 mm) |
| Safety Toe Positions | 1 |
| Working Pressure | 7,542 psi (520 bar) |
| Overall Dimentions (LxWxH) | 8.4x8.4x7.5" (210x215x190 mm) |
| Weight | 26 lbs (12 kg) |
| Item Number | 10187 |
 | Dimension sheet V5K-EX |
V10K-EX
| Full Load Capacity | 100 kN / 22,000 lbs (10 t) |
| Lifting Height | 4.3" (110 mm) |
| Loading Height | |
| Toe (min) | 0.8" (20 mm) |
| Toe (max) | 4.3" (110 mm) |
| Top Plate | 8.3" (211 mm) |
| Safety Toe Positions | 1 |
| Working Pressure | 7,542 psi (520 bar) |
| Overall Dimentions (LxWxH) | 11x11.3x8.3" (280x287x211 mm) |
| Weight | 55 lbs (25 kg) |
| Item Number | 11889 |
| Dimension sheet V10K-EX |

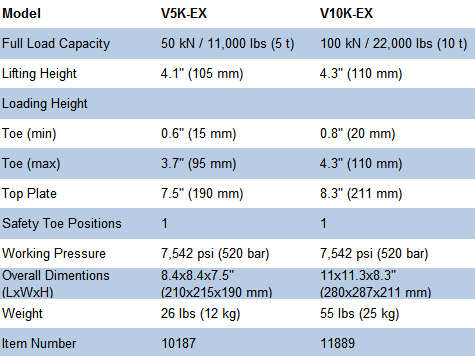

Comparison Chart
