Forklift Jacks up to 10t

Hydraulic Jacks for lifting fork lift trucks / industrial vehicles (up to 10t)

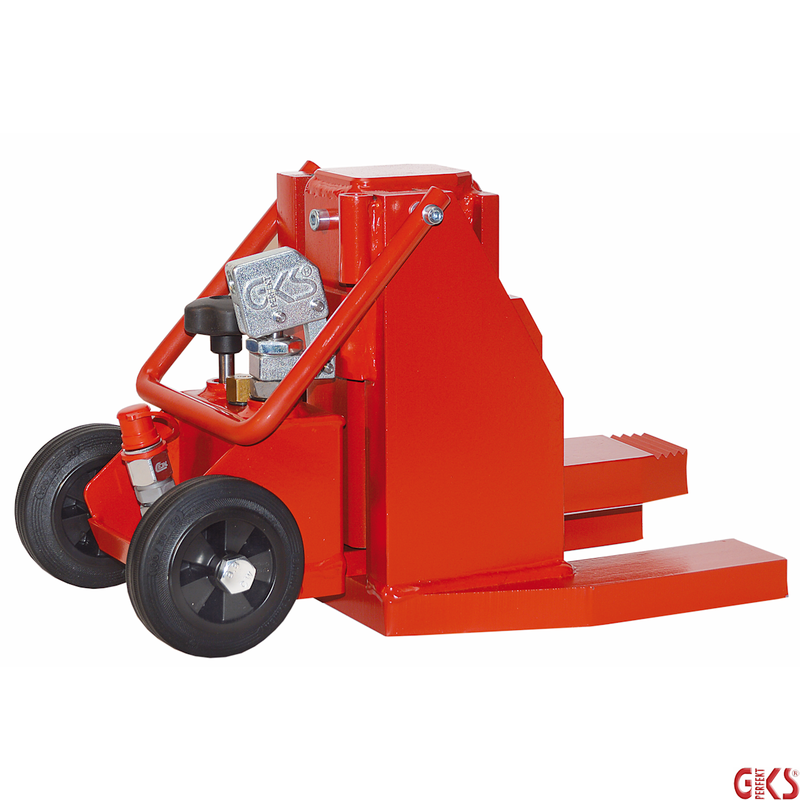

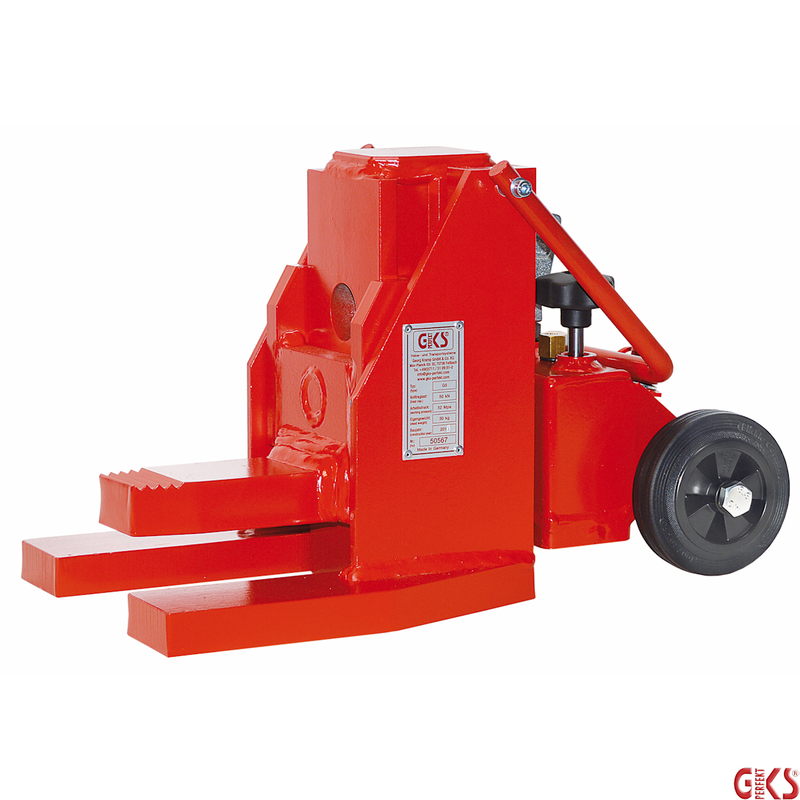

G5

Full Load Capacity 50 kN / 11,000 lbs (5 t)
Lifting Height 5.5" (140 mm)
Loading Height
Toe (min) 1.2" (30 mm)
Toe (max) 6.4" (162 mm)
Top Plate 10.4" (265 mm)
Safety Toe Positions 3
Working Pressure 7,542 psi (520 bar)
Overall Dimensions (LxWxH) 15.6x10x10.4" (397x255x265 mm)
Weight 66 lbs (30 kg)
Item Number 10189
pdfDimension sheet G5

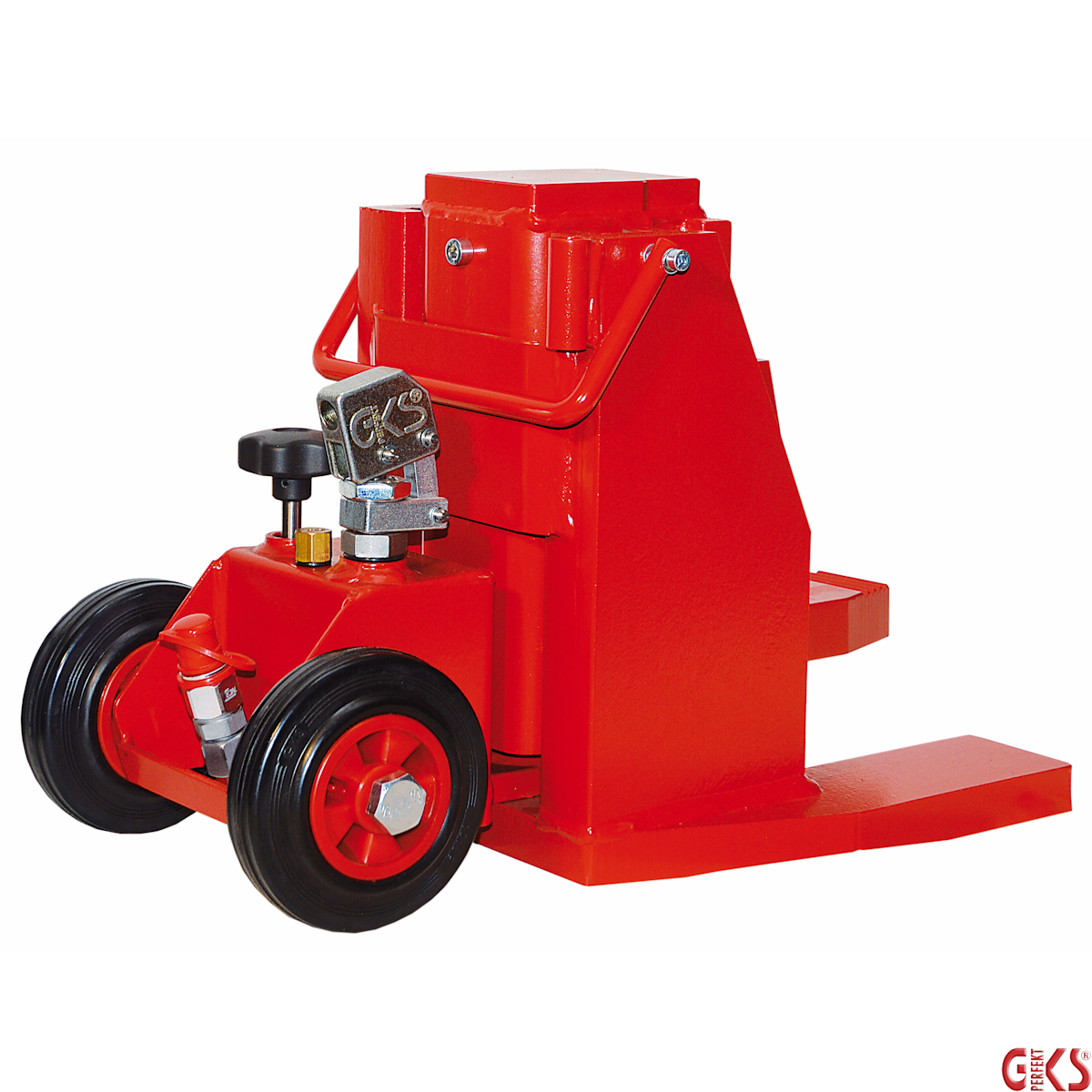

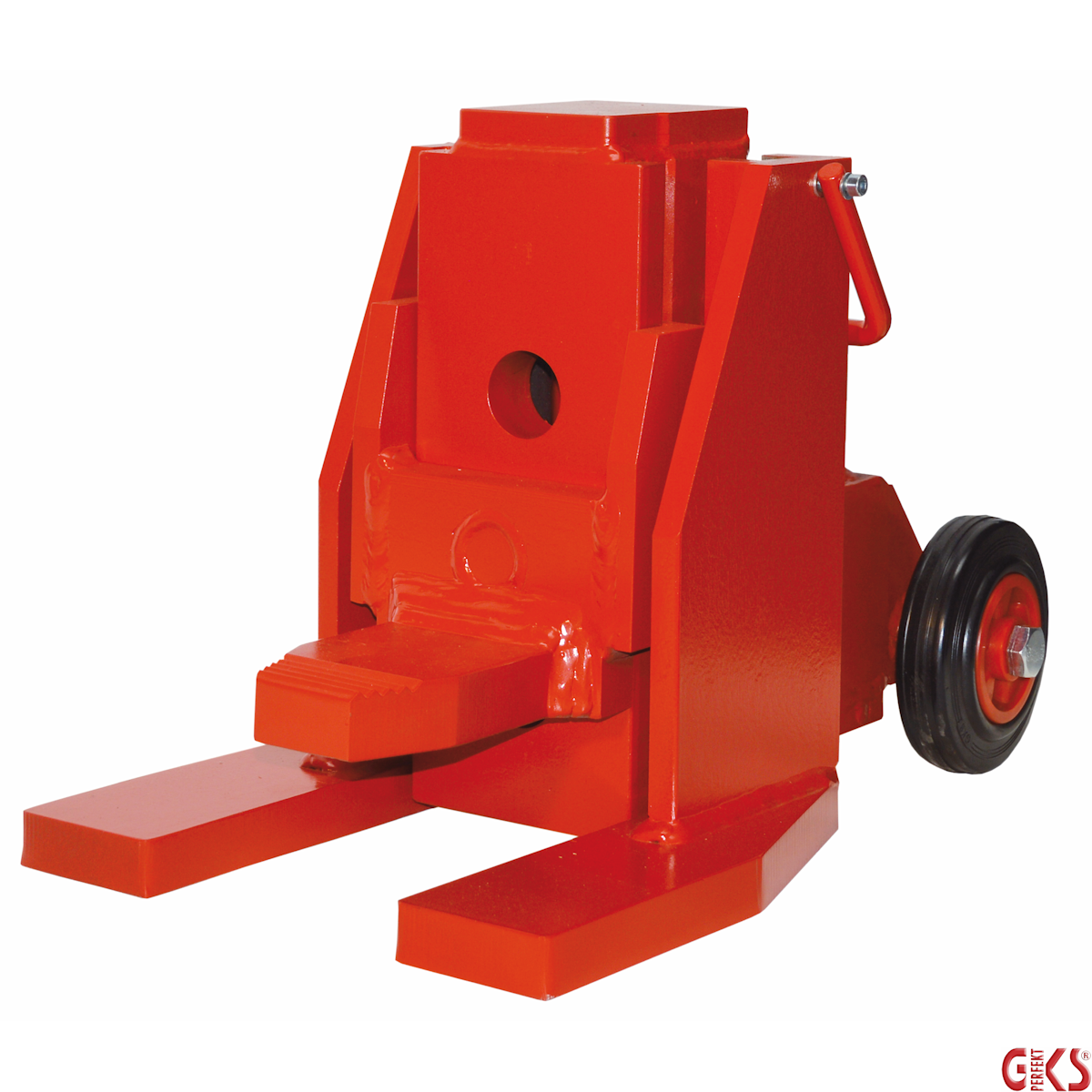

G10 - upon request

Full Load Capacity 100 kN / 22,000 lbs (10 t)
Lifting Height 5.5" (140 mm)
Loading Height
Toe (min) 1.2" (30 mm)
Toe (max) 6.9" (175 mm)
Top Plate 12.5" (318 mm)
Safety Toe Positions 3
Working Pressure 7,542 psi (520 bar)
Overall Dimensions (LxWxH) 18.1x11x12.5" (461x280x318 mm)
Weight 126 lbs (57 kg)
Item Number 12378
pdfDimension sheet G10





Comparison Chart
